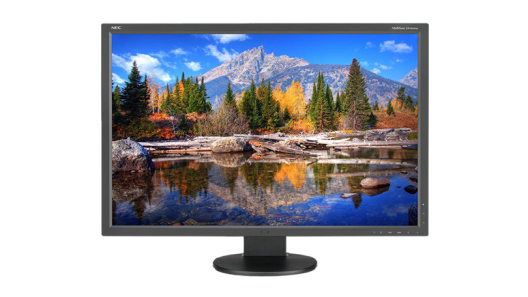

Designed for business users who require a big-screen display that can be used in a multi-monitor configuration, the NEC MultiSync EA305WMi ($1,399) uses an Advanced High-Performance In-Plane Switching (AH-IPS) panel to deliver very accurate colors and sharp gray-scale reproduction. This 30-inch business monitor doesn’t come cheap, but it is packed with features, including multiple video ports, a USB hub, a fully adjustable stand, and NEC’s ControlSync multi-display configuration technology. It’s our top pick for big-screen business monitors.
Design and Features
The EA305WMi($810.55 at Amazon)(Opens in a new window) maintains the classic MultiSync aesthetic seen on models such as the NEC MultiSync EA274WMi ($670.06 at Amazon)(Opens in a new window) , a top pick, and the NEC MultiSync EA244UHD ($1,499.95 at Amazon)(Opens in a new window) . It uses a 3-inch-thick, matte-black cabinet with thin (0.75-inch) black bezels and a matching stand that provides the full gamut of adjustments, including height, tilt, swivel, and pivot. There are five touch-sensitive buttons on the right side of the bottom bezel, and three more buttons on the right-hand bezel that are used to power on the monitor and navigate the settings menus. An ambient light sensor and a human sensor, both of which are designed to help conserve power usage, are located on the left side of the bottom bezel.
The 30-inch panel has a non-reflective coating to reduce glare, a maximum resolution of 2,560 by 1,600, a 16:10 aspect ratio, and a peak brightness of 350 cd/m2. There are plenty of ports around back, including a DisplayPort input, a DisplayPort output that can be used to connect multiple monitors, one HDMI input, one DVI video input, one audio input, one USB 3.0 upstream port, and two USB 3.0 downstream ports. Here, you’ll also find two ControlSync ports (one in, one out) that can be used to control and apply settings to up to five additional monitors when used in a multi-monitor configuration. The left side of the cabinet holds one USB 2.0 port and a headphone jack. The EA305WMi has a pair of 1-watt speakers that are woefully underpowered for listening to music or movie soundtracks, but will suffice for system sounds.
As with the NEC EA274WMi, the EA305WMi provides plenty of settings. There are six picture presets (Standard, Text, Movie, Gaming, Photo, and Dynamic), as well as Brightness, Contrast, and Black Level adjustments. There’s a Uniformity setting that compensates for deviations in white levels, Human Sensing settings that determine the threshold of inactivity before the monitor enters a light or deep power-saving mode, and an Auto Brightness setting that uses the ambient-light sensor to automatically adjust brightness levels based on screen content, ambient light, or both.
Similar Products
NEC MultiSync EA274WMi
Check Stock
(Opens in a new window)
Read Our NEC MultiSync EA274WMi Review
Acer Predator X34
Check Stock
(Opens in a new window)
Read Our Acer Predator X34 Review
BenQ XR3501
Check Stock
(Opens in a new window)
Read Our BenQ XR3501 Review
NEC MultiSync EA244UHD
Check Stock
(Opens in a new window)
Read Our NEC MultiSync EA244UHD Review
BenQ XL2430T
Check Stock
(Opens in a new window)
Read Our BenQ XL2430T Review
BenQ SW2700PT
Check Stock
(Opens in a new window)
Read Our BenQ SW2700PT Review
BenQ BL3201PH
See It
(Opens in a new window)
Read Our BenQ BL3201PH Review
Lenovo ThinkVision Tiny-In-One 23
See It
(Opens in a new window)
Read Our Lenovo ThinkVision Tiny-In-One 23 Review
Dell UltraSharp U3415W
See It
(Opens in a new window)
Read Our Dell UltraSharp U3415W Review
ViewSonic VP2780-4K
See It
(Opens in a new window)
Read Our ViewSonic VP2780-4K Review
Philips 19DP6QJNS
Check Stock
(Opens in a new window)
Read Our Philips 19DP6QJNS Review
Philips E-Line 247E6BDAD/27
See It
(Opens in a new window)
Read Our Philips E-Line 247E6BDAD/27 Review
Asus PA328Q
Check Stock
(Opens in a new window)
Read Our Asus PA328Q Review
NEC MultiSync EA275UHD
Check Stock
(Opens in a new window)
Read Our NEC MultiSync EA275UHD Review
NEC MultiSync P212
Check Stock
(Opens in a new window)
Read Our NEC MultiSync P212 Review
Acer R240HY
See It
(Opens in a new window)
Read Our Acer R240HY Review
The Color Control System offers four presets that increase and decrease Red, Green, and Blue color values, as well as a Native setting, an sRGB setting, a Digital Imaging and Communications in Medicine (DICOM) setting, and a Programmable setting that you can use with third-party software to adjust white-point and gamma levels. There are two ECO Mode power-saving settingsone that can reduce power by up to 15 percent, and another that can reduce power by up to 40 percent.
The EA305WMi comes with a three-year warranty on parts, labor, and backlight. Included in the box are DVI, DisplayPort, and ControlSync cables, a USB upstream cable, and a Setup Guide.
Performance
The EA305WMi is a stellar performer. As shown on the chromaticity chart below, out-of-the-box color accuracy is first rate. Red, green, and blue colors (represented by the colored dots) are perfectly aligned with their ideal CIE coordinates (represented by the boxes). The AH-IPS panel displayed rich, well-saturated colors in my test images and while displaying scenes from Marvel’s Captain America: The Winter Soldier on Blu-ray.
The panel performed beautifully on the DisplayMate 64-Step Gray-Scale test, displaying every shade of gray evenly without any clipping (whitewashing) or crushed blacks. Highlight and shadow detail were also superb in my test images, as was the picture’s overall contrast. Additionally, viewing angles were wide, with no discernable color shifting or loss of luminance when viewed from an extreme top, side, or bottom angle.
See How We Test Monitors
Although the EA305WMi isn’t designed for gaming, you can enjoy a bit of after-hours fun without experiencing too much artifact interference. I observed some ghosting while playing Crysis 3, but that’s to be expected from a panel with a 6-millisecond pixel response. Using a Leo Bodnar Video Signal Lag Tester, I measured input lag (the time it takes for the monitor to react to a controller command) at 29.1 milliseconds. That isn’t terrible, but it’s not nearly as fast as the BenQ XL2430T ($449.00 at Walmart)(Opens in a new window) and the SW2700PT ($529.99 at Amazon)(Opens in a new window) , both of which measured a lag time of just 9.5 milliseconds.
While not exactly a power hog, the EA305WMi is not the most energy-efficient big-screen monitor we’ve seen. It averaged 78 watts of power in testing while set to the Standard picture mode with ECO Mode disabled. Enabling ECO Mode 2 reduced power usage to 42 watts. The Acer Predator X34 ($2,399.00 at Amazon)(Opens in a new window) , which has a larger 34-inch panel, consumed 49 watts in Standard mode and 36 watts in ECO mode, and the 35-inch BenQ XR3501 ( at Amazon)(Opens in a new window) used 50 watts in Standard mode (it does not offer an ECO-mode setting).
Conclusion
You’ll pay big bucks for the NEC MultiSync EA305WMi, but if your business requires a big-screen monitor that offers superior performance and support for a multi-display configuration, it’s worth the premium. The 30-inch AH-IPS panel delivered spot-on color accuracy and aced our gray-scale and viewing-angle performance tests, and it offers a solid assortment of features, including ControlSync technology that lets you manage up to six connected monitors, a fully adjustable stand, a USB hub, and a wealth of picture settings. Its speakers are underwhelming, but that’s not usually a deal-breaker for business users and certainly doesn’t prevent the EA305WMi from earning our Editors’ Choice for big-screen business monitors.
4.0
(Opens in a new window)
(Opens in a new window)
View More
The NEC MultiSync EA305WMi is a pricey 30-inch monitor that delivers outstanding color and gray-scale performance and is packed with business-friendly features.
