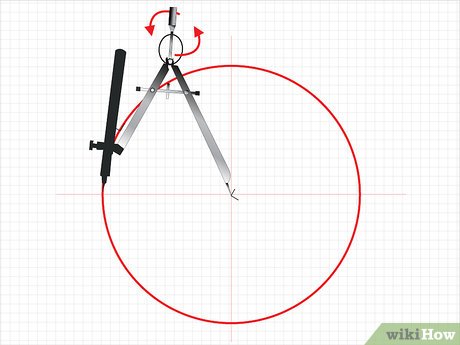

Draw a circle with a compass. Place a pencil in your compass. Widen the compass to an appropriate width for the radius of your circle. It can be just a few inches or centimeters wide. Next, place the point of the compass on the paper and sweep the compass around until you’ve created a circle.
Sometimes it’s easier to draw a half-circle in one direction, and then to come back and draw another half-circle in the other direction.

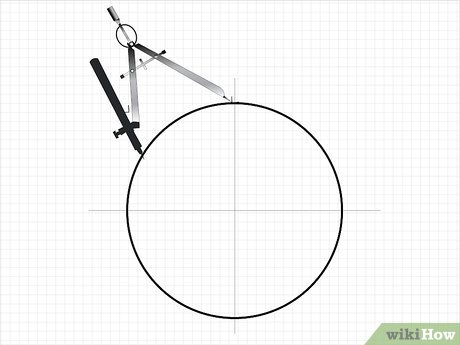

Make a small mark on the edge of the circle with the pencil. Make it distinct, but not too dark — you’ll be erasing it later. Remember to maintain the angle you’ve set for the compass.

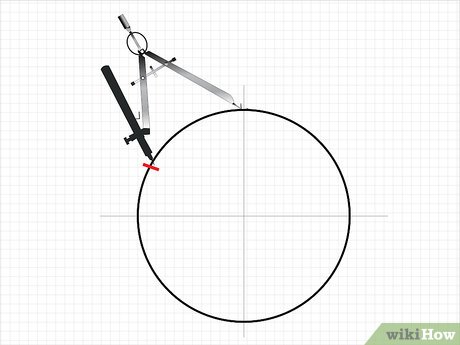

Make another mark on the edge of the circle with a pencil. This should create a second mark a distance away from the first mark. If you’ve been moving clockwise or counterclockwise around the circle, continue to do so.

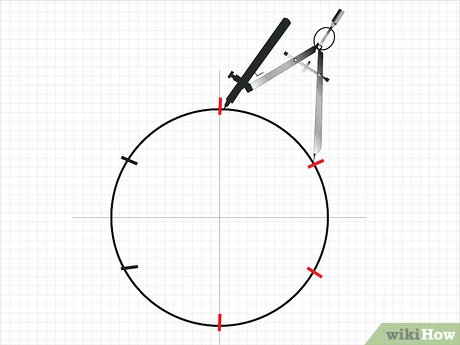

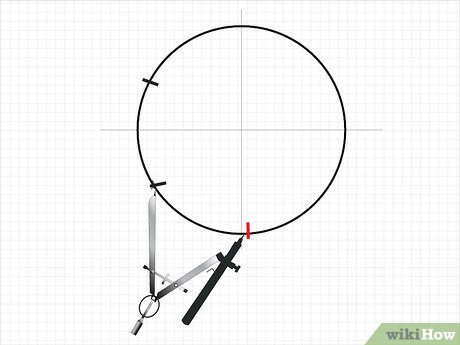

Make the last four marks using the same method. You should end up back at the mark where you originally started. If you don’t, it’s likely that the angle of your compass changed while you worked, possibly from squeezing it too firmly or letting it loosen a bit.
Connect the dots with a ruler. The six places where your marks cross the edge of the circle are the six points of your hexagon. Use your ruler and a pencil to draw a straight line segment that connects the adjacent dots.

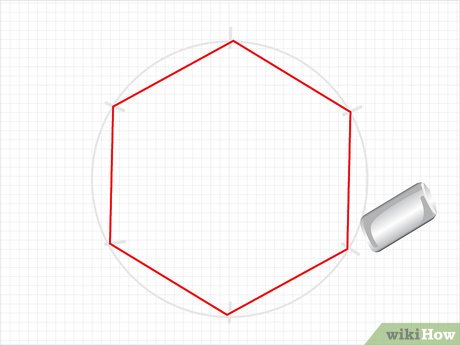

Erase your guiding lines. These include your original circle, the marks along the edges, and any other marks you made along the way. Once you’ve erased your guiding lines, your perfect hexagon should be complete.
Method 2
Method 2 of 3:
Drawing a Rough Hexagon Using a Round Object and a Ruler

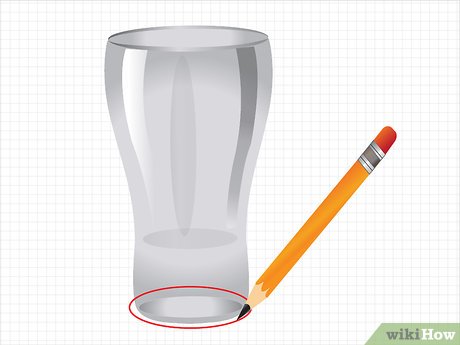

Trace the round rim of a glass with a pencil. This will create a circle. It’s important to use a pencil because you’ll need to erase the marks you made later. You can also trace the rim of an upside-down mug, a jar or food container, or anything else with a round base.

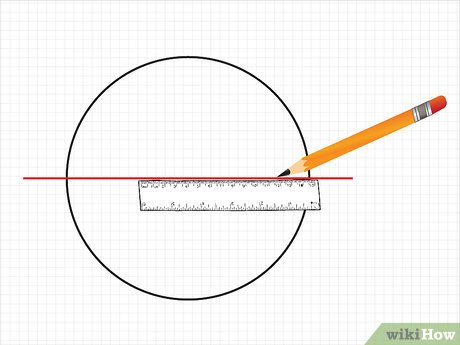

Draw a horizontal line through the center of your circle. You can use a ruler, book, or any straight edge to do this. If you do have a ruler, you can find the halfway mark by measuring the vertical length of the circle and splitting it in half.

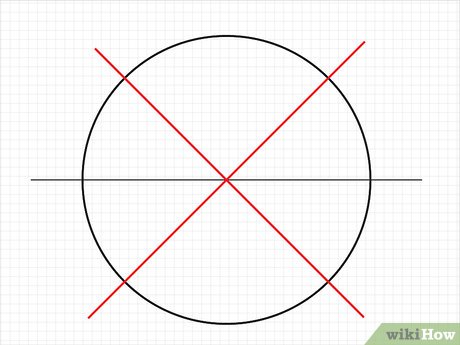

Draw an X over the halved circle, splitting it up into 6 equal sections. Since you already have a line running down the middle of the circle, the X will have to be taller than it is wide to keep the pieces even. Just think of this as slicing a pizza into 6 equal pieces.
Turn each of the six sections into triangles. To do this, simply use a ruler to draw a straight line under the curved part of each section, connecting it to the other two straight lines to form a triangle. Repeat this process six times. You can think of this as forming a “crust” around your pizza slices.

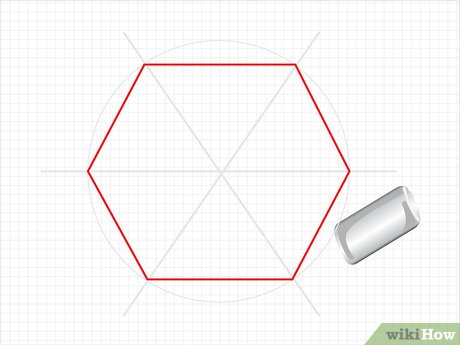

Erase your guiding lines. The guiding lines include the lines in your original circle, the three lines that separate the circle into six sections, and any other marks you made along the way.

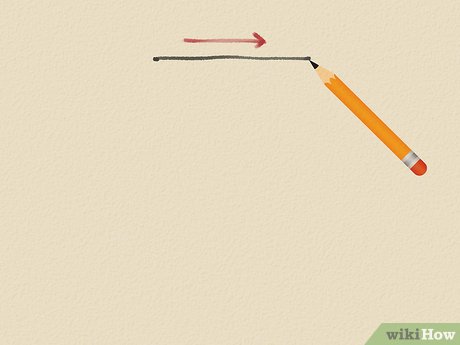

Draw a horizontal line. To draw a straight line without a ruler, just draw a starting and ending dot for the horizontal line. Then place your pencil on the starting dot and keep your eye on the ending dot as you draw a straight line toward it. This line can be just a few inches or centimeters long.
Draw two diagonal lines from the ends of the horizontal line. The diagonal line on the left side should be opening up toward the left, and the diagonal line on the right side should be opening up toward the right. You can think of each of these lines forming a 120 degree angle with the horizontal line.
Draw two more diagonal lines moving inward from the bottom edges of the first two diagonal lines. They should create a mirror-image of the first two diagonal lines. The line on the bottom left should look like a reflection of the line on the top left, and the line on the bottom right should look like a reflection of the line on the top right. While the top lines were moving outward from the top horizontal line, the bottom lines should move inward from the bottom edges of the top lines, toward the space where the base will be.
Draw another horizontal line connecting the two bottom lines. This will form the base of the hexagon. It should ideally be parallel to the top horizontal line. This will complete your hexagon.
To improve your artistic skills make drawing fun. Draw whatever makes you happy.
Doodle, scribble, make shapes on scrap pieces of paper.
Copy drawings and paintings that you like.
Video
By using this service, some information may be shared with YouTube.
Either method works to create a perfect hexagon by forming 6 equilateral triangles with the radius as the length of all of the sides. The six radii drawn are all of the same length and the six chords drawn to create the hexagon are each the same length as the radius because the compass width was not changed. Because the six triangles are all equilateral, the angles between the vertices are each 60°.
Things You’ll Need
Paper
Pencil
Ruler
A pair of compasses (the kind used for drawing circles is technically referred to as a “pair of compasses” to distinguish it from a navigator’s compass, which has a magnetic North/South, etc.) or a glass/mug
Something to put under the paper so that the compass point doesn’t slip
Eraser
Protractor
