How to : How to Read a Patient Monitor at the Hospital

Things You Should Know

Read the numbers on the right-hand side of the monitor to learn the patient’s pulse rate, body temperature, and blood pressure.
Use the respiratory and oxygen saturation rates to keep tabs on the patient’s breathing and circulatory system.
Watch the waveforms for any signs of irregular heartbeat or breathing.

1

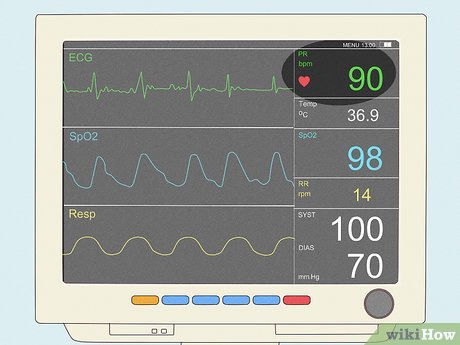

Pulse rate (PR)

A normal resting pulse rate is between 60 and 100 beats per minute. This number is typically in the top right-hand corner of the monitor screen and tells you how fast the patient’s heart is beating. The number might go up when the patient sits up, talks, or moves around.^{[1]

X

Trustworthy Source
MedlinePlus

Collection of medical information sourced from the US National Library of Medicine
Go to source

Someone who is injured or ill is likely to have a higher resting pulse rate than normal, but this is usually no cause for alarm. The monitor will issue an alert if the number gets too high.
Athletes who do a lot of cardiovascular training, such as cyclists or long-distance runners, might have a normal resting pulse rate of around 40 beats per minute.^{[2]

X

Research source}}

2

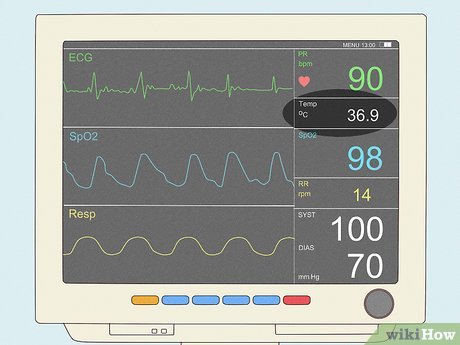

Body temperature (TEMP)

The normal temperature range for adults is 97.8 to 99 °F (36.6 to 37.2 °C). This is typically the second number you’ll see on a patient monitor, directly under the pulse rate. A body temperature over 99 °F (37 °C) is considered a fever, while anything below 95 °F (35 °C) is considered hypothermia.^{[3]

X

Trustworthy Source
Johns Hopkins Medicine

Official resource database of the world-leading Johns Hopkins Hospital
Go to source

It’s normal for a patient’s body temperature to go up a degree or so if they’re eating or active. Their temperature might also go down a degree or two if they’re sleeping.}

3

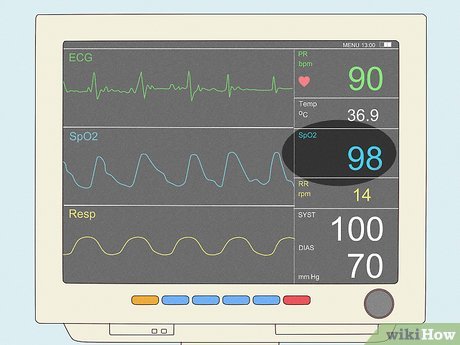

Blood-oxygen level (SpO2)

Normal oxygen levels are between 95 and 100. This number is a percentage that tells you how much oxygen is in the patient’s blood. Even a little below 95 is usually okay, but the patient might require supplemental oxygen if the number drops below 90.^{[4]

X

Trustworthy Source
Cleveland Clinic

Educational website from one of the world’s leading hospitals
Go to source

Oxygen saturation is typically monitored using a pulse oximeter, a small clip on the patient’s finger or toe.
The SpO2 number isn’t always displayed on a patient monitor, but you’ll usually see it if the patient is experiencing a respiratory condition, such as pneumonia or COVID-19.}

4

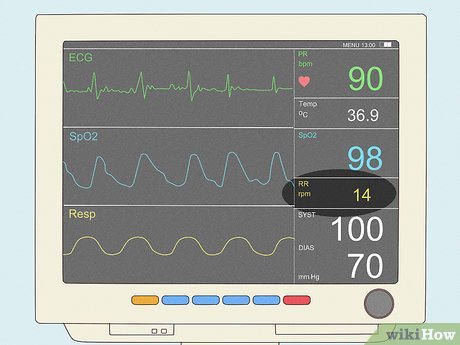

Respiration rate (RR)

The normal respiration rate for adults at rest is 12-16 breaths per minute. Quite simply, this is the number of breaths the patient takes in one minute. A patient’s respiration rate typically increases if they have a fever and might not be any cause for alarm. However, you do want to make sure the patient isn’t having any difficulty breathing.^{[5]

X

Trustworthy Source
Johns Hopkins Medicine

Official resource database of the world-leading Johns Hopkins Hospital
Go to source

If the patient seems to be having trouble breathing, such as if they’re gasping for breath or breathing very shallowly, press the call button to have a nurse come and evaluate their condition.}

5

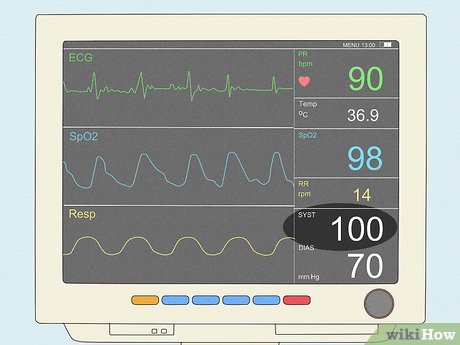

Systolic blood pressure (SYST)

Normal systolic blood pressure is between 90-120 mm Hg. This number, together with the diastolic blood pressure number, is typically found in the bottom-right corner of the screen. Systolic blood pressure tells you the amount of force exerted on the patient’s arteries at the moment when their heart is beating.^{[6]

X

Trustworthy Source
MedlinePlus

Collection of medical information sourced from the US National Library of Medicine
Go to source

High blood pressure occurs with systolic blood pressure of 140 mm Hg or greater.^{[7]

X

Research source}

A patient’s systolic blood pressure is read together with their diastolic blood pressure—even though the numbers might appear separately, they’re expressed as a single unit.}

6

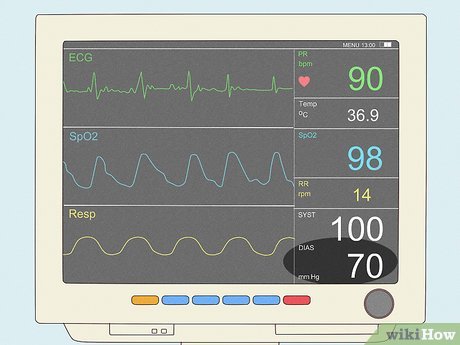

Diastolic blood pressure (DIAS)

Normal diastolic blood pressure is between 60-80 mm Hg. Diastolic blood pressure is the force exerted on the patient’s arteries between heartbeats, or when their heart is at rest.^{[8]

X

Trustworthy Source
MedlinePlus

Collection of medical information sourced from the US National Library of Medicine
Go to source

High blood pressure occurs with diastolic blood pressure of 90 mm Hg or greater.^{[9]

X

Research source}

When you read a patient’s blood pressure, express it as a ratio with the systolic blood pressure over the diastolic blood pressure. For example, if the monitor showed systolic blood pressure of 110 and diastolic blood pressure of 75, you’d say the patient’s blood pressure is “110 over 75.”}

7

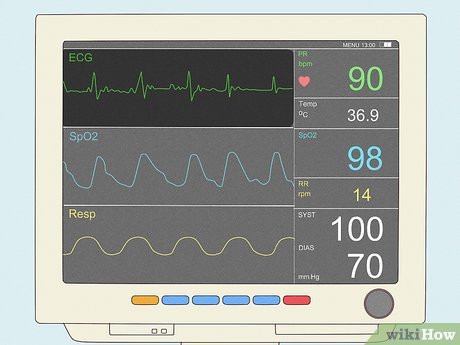

ECG waveform

An electrocardiogram (ECG) records the electrical activity of the heart. This is usually the top wavy line on the hospital monitor. You can think of it as an image of the pulse rate, which is displayed right next to it. Healthcare practitioners study extensively to learn how to read and interpret an ECG waveform. As the loved one of a patient, all you really need to know is that each spike or peak corresponds to a heartbeat. If the patient has a regular heartbeat, these spikes will occur the same number of little blocks apart from each other.^{[10]

X

Trustworthy Source
PubMed Central

Journal archive from the U.S. National Institutes of Health
Go to source

The ECG on a patient’s hospital monitor typically comes from lead II, electrodes attached to the patient’s right arm and left leg. If the ECG shows any irregularities, doctors or nurses will confirm the issue by attaching additional leads.}

8

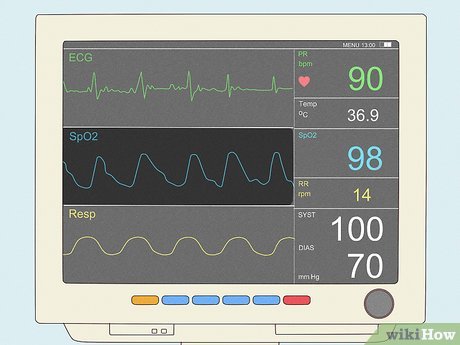

SpO2 waveform

Use the SpO2 waveform to monitor the patient’s blood flow. The SpO2 waveform is the wavy line under the ECG waveform, usually blue but sometimes red. As long as each crest on the SpO2 waveform matches up with a spike on the ECG right above it, you can rest assured that oxygenated blood is circulating efficiently with each heartbeat.^{[11]

X

Research source

Like the ECG, healthcare professionals undergo a lot of training to learn how to interpret these waveforms. It helps them see how well the heart is pumping blood, particularly to the patient’s extremities.}

9

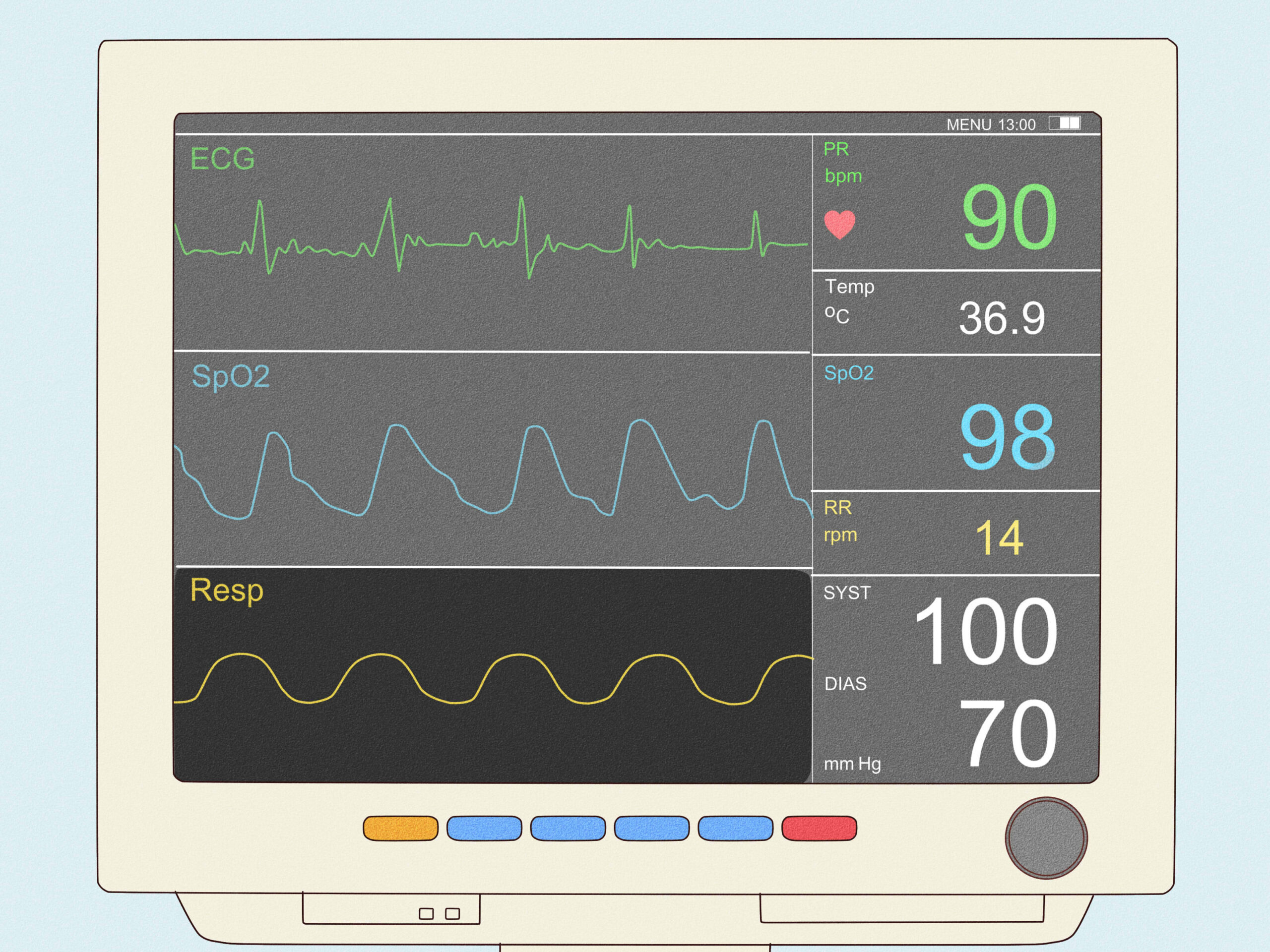

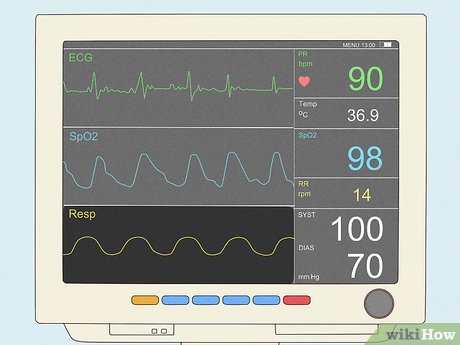

Respiration waveform

The respiration waveform shows how well the patient is breathing. Most patient monitors don’t have a respiration waveform, but it’ll be there if they have respiratory issues. This is the wavy line at the bottom of the screen and is usually yellow or white.^{[12]

X

Research source

Doctors and nurses use this waveform to identify apnea (when the patient suddenly stops breathing) or dyspnea (when the patient has difficulty breathing).}

Tips

Visiting a loved one in the hospital can be an overwhelming experience. Remember to take breaks to recharge. Most hospitals also have counseling services available if you need to talk to someone.^{[13]

X

Research source}

⧼thumbs_response⧽

Helpful
3

Not Helpful
1

Warnings

Avoid focusing too much on a single number. Doctors and nurses will look at the vital signs together and take the context into consideration. A single number out of normal range usually isn’t cause for concern.^{[14]

X

Research source}

⧼thumbs_response⧽

Helpful
3

Not Helpful
0
If the monitor or another piece of equipment starts beeping, call a nurse to come and check it out.^{[15]

X

Research source}

⧼thumbs_response⧽

Helpful
4

Not Helpful
0
